HOW IT WORKS

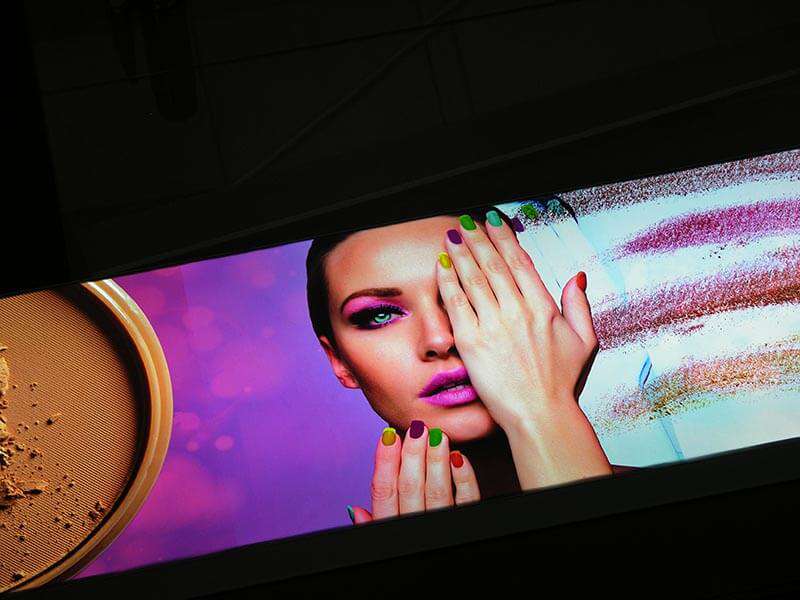

A fabric face without a visible front frame.

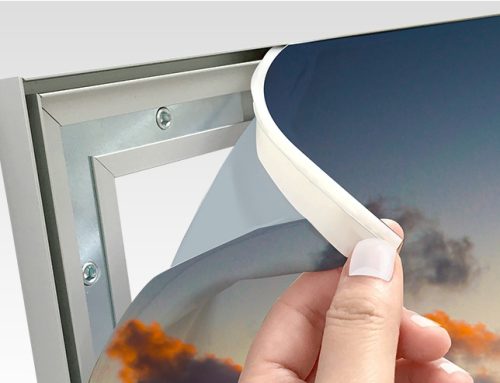

A printed fabric graphic is sewn with a silicone strip along its edges. The strip fits into a channel in the aluminium profile, holding the fabric taut and giving the display its clean, frameless appearance. This is known as Silicone Edge Graphics (SEG).

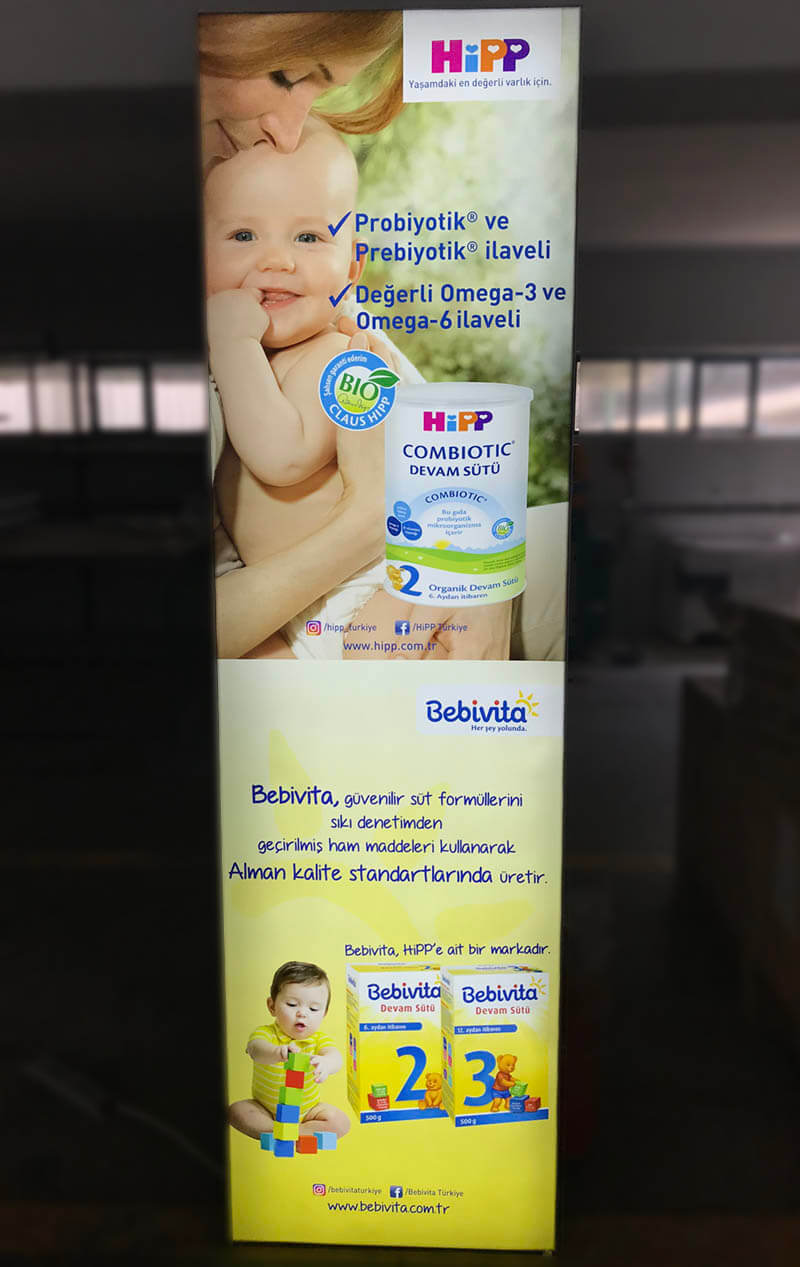

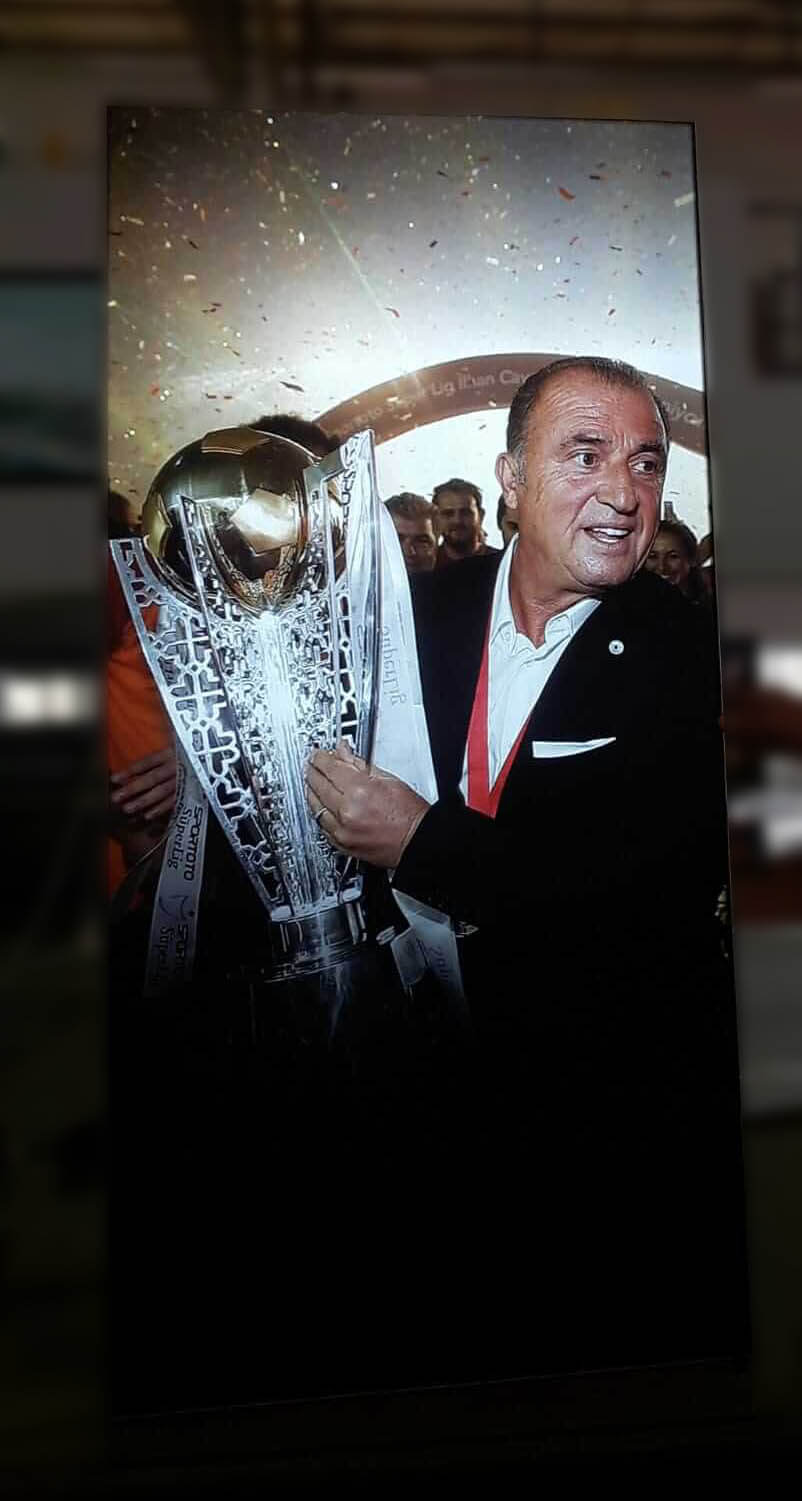

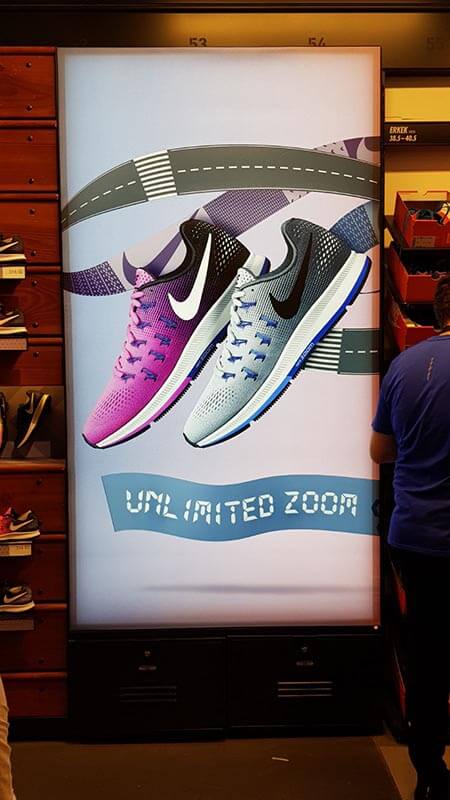

Unlike a conventional lightbox with a visible front bezel, an SEG system presents the graphic almost edge to edge. Frames can be made for a range of sizes, including large-format retail applications. The printed face can be changed when a campaign changes while the frame stays in place.
PROFILE RANGE
Choose the depth and viewing direction.
The original range contains four single-sided profiles and two double-sided profiles. The figures below refer to profile depth; final dimensions, LED layout and mounting method should be planned for the individual project.
01 / 06 • SINGLE-SIDED
Single-sided 45 mm
Slim illuminated textile box
Installed fabric display example
Profile & applications
Frame: Single-sided 45 mm aluminium textile-box profile.
Original lighting specification: LED illumination, nominal 6000–7000 K colour temperature, with attention to power consumption.
Applications: Wall-mounted installations and ceiling-mounted illuminated displays.
Finish: Silver, black or white; selected RAL colour options can be discussed.

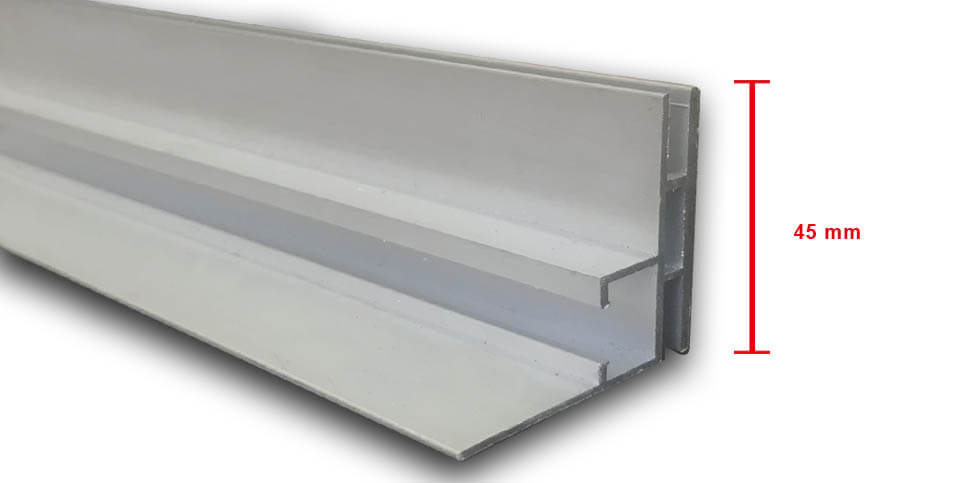

45 mm aluminium profile
02 / 06 • SINGLE-SIDED
Single-sided ECO 50 mm
Compact illuminated textile box
Installed fabric display example
Profile & applications
Frame: Single-sided 50 mm aluminium textile-box profile.
Original lighting specification: LED illumination, nominal 6000–7000 K colour temperature, with attention to power consumption.
Applications: Wall-mounted displays and smaller-format installations.
Finish: Silver, black or white; selected RAL colour options can be discussed.

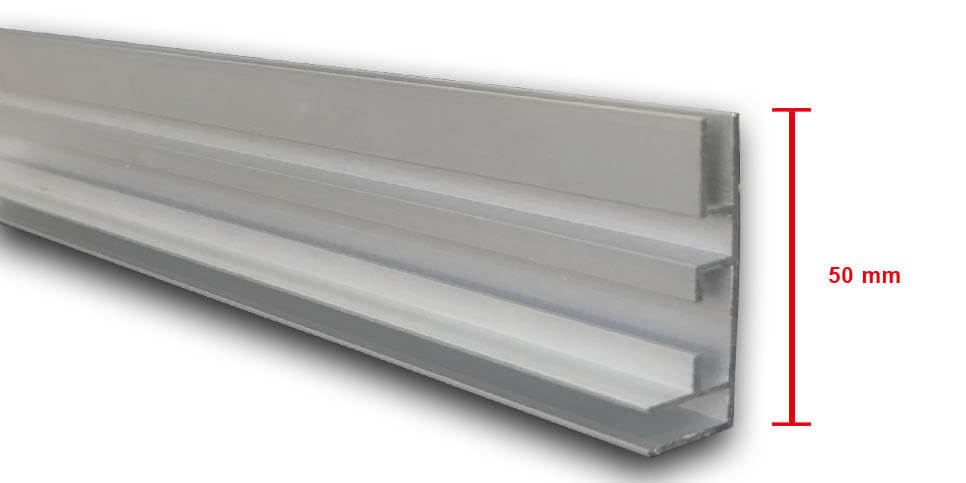

50 mm aluminium profile
03 / 06 • SINGLE-SIDED
Single-sided 75 mm
A deeper frame for larger graphics
Installed fabric display example
Profile & applications
Frame: Single-sided 75 mm aluminium textile-box profile.
Original lighting specification: LED illumination, nominal 6000–7000 K colour temperature, with attention to power consumption.
Applications: Wall-mounted installations and larger-format graphics.
Finish: Silver, black or white; selected RAL colour options can be discussed.

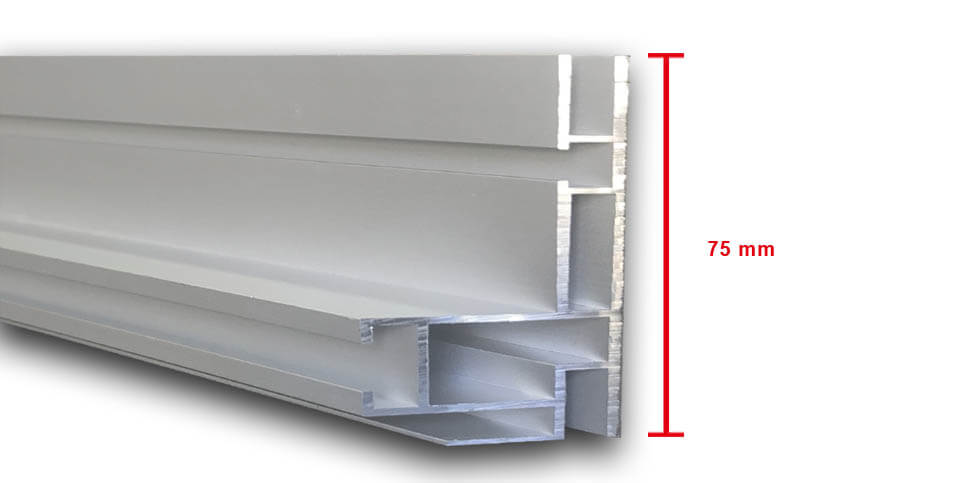

75 mm aluminium profile
04 / 06 • SINGLE-SIDED
Single-sided 100 mm
Flexible presentation for larger formats
Installed fabric display example
Profile & applications
Frame: Single-sided 100 mm aluminium textile-box profile.
Original lighting specification: LED illumination, nominal 6000–7000 K colour temperature, with attention to power consumption.
Applications: Wall-mounted, larger-format and freestanding displays.
Finish: Silver, black or white; selected RAL colour options can be discussed.

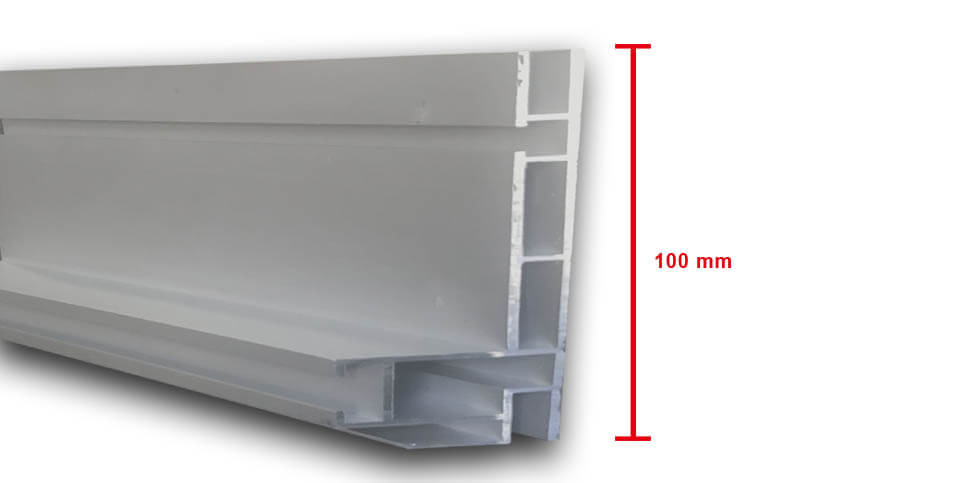

100 mm aluminium profile
05 / 06 • DOUBLE-SIDED
Double-sided 80 mm
Graphic visibility from both sides
Installed fabric display example
Profile & applications
Frame: Double-sided 80 mm aluminium textile-box profile.
Original lighting specification: LED illumination, nominal 6000–7000 K colour temperature, with attention to power consumption.
Applications: Wall-mounted and freestanding applications with two printed faces.
Finish: Silver, black or white; selected RAL colour options can be discussed.

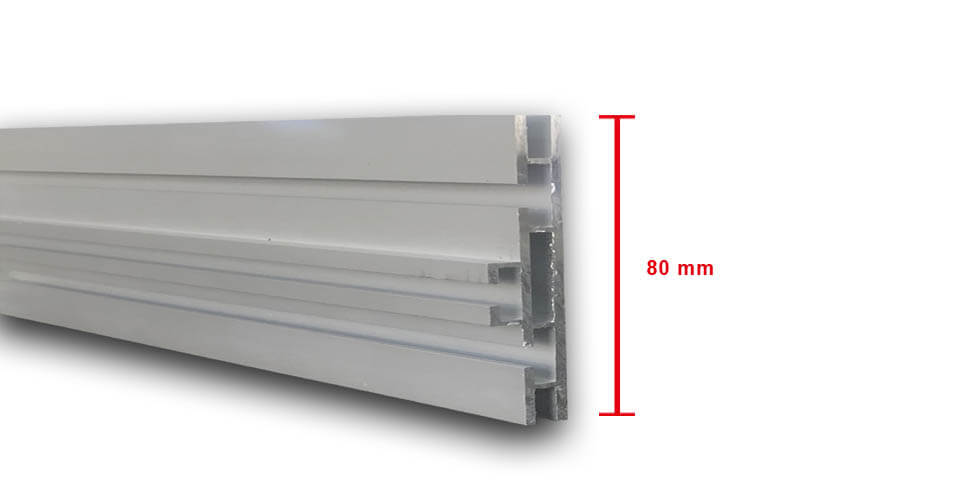

80 mm aluminium profile
06 / 06 • DOUBLE-SIDED
Double-sided 120 mm
Two-sided display for larger installations
Installed fabric display example
Profile & applications
Frame: Double-sided 120 mm aluminium textile-box profile.
Original lighting specification: LED illumination, nominal 6000–7000 K colour temperature, with attention to power consumption.
Applications: Wall-mounted, freestanding and large suspended installations, subject to structural planning.
Finish: Silver, black or white; selected RAL colour options can be discussed.

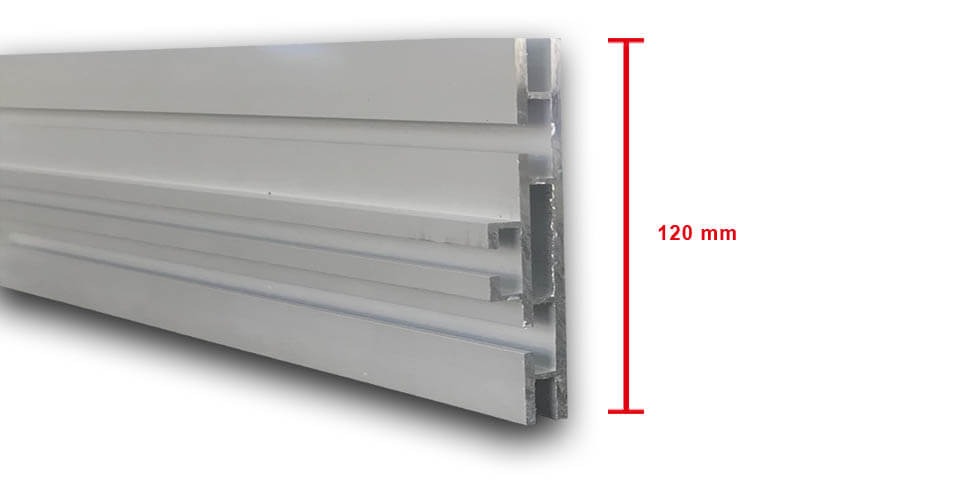

120 mm aluminium profile
CHOOSING A PROFILE
Match the system to the installation.
Single-sided
A one-face system is suited to a wall or any position viewed mainly from the front. The 45, 50, 75 and 100 mm options provide different frame depths for the intended size and construction.
Double-sided
An 80 or 120 mm two-face system can be viewed from opposing directions. It can work as a freestanding or suspended display when the fixing, size and structural conditions allow.
FINAL SPECIFICATION
Lighting, finish and warranty are confirmed per project.
The previous page listed bright, energy-conscious LED lighting and a 6000–7000 K colour temperature for every profile. LED selection, brightness, power supply and light distribution depend on the final dimensions and viewing environment.
Silver, black, white and RAL finishes were listed as options, along with a two-year warranty in the original specifications. Confirm available finishes and the current warranty scope in the written quotation for your selected system.
